WIRE ROPE
Bridge crane, gantry crane, tower crane, vehicle crane, crawler crane, port crane, etc.

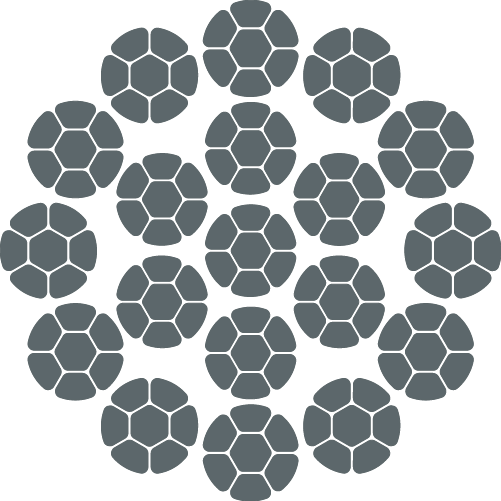

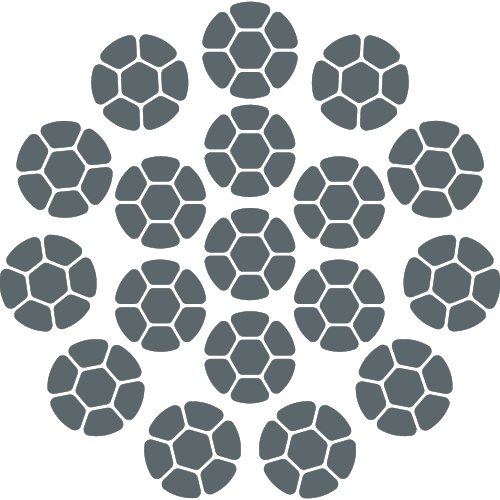

Rotation-resistant design. The structure offsets the rotational torque by designing the opposite twist direction of the inner and outer rope strands, so that it can effectively prevent the load from spinning under the condition of single-rope lifting without a guide device, ensuring the safety and accuracy of the operation.
Compacted strand, higher minimum breaking load than that that of round strand class 18x7.
| Nominal diameter (mm) |
Approx. weight (kg/100m) |
Minimum breaking force (kN) | ||
| 1770 | 1960 | 2160 | ||
| 6 | 16.6 | 23.6 | 26.1 | 28.8 |
| 7 | 22.5 | 32.1 | 35.5 | 39.2 |
| 8 | 29.4 | 41.9 | 46.4 | 51.1 |
| 9 | 37.3 | 53.0 | 58.7 | 64.7 |
| 9.53 | 41.8 | 59.5 | 65.9 | 72.6 |
| 10 | 46.0 | 65.5 | 72.5 | 79.9 |
| 11 | 55.7 | 79.2 | 87.7 | 96.7 |
| 12 | 66.2 | 94.3 | 104 | 115 |
| 12.7 | 74.2 | 106 | 117 | 129 |
| 13 | 77.7 | 111 | 123 | 135 |
| 14 | 90.2 | 128 | 142 | 157 |
| 14.3 | 94.1 | 134 | 148 | 163 |
| 15.9 | 116 | 166 | 183 | 202 |
| 16 | 118 | 168 | 186 | 205 |
| 18 | 149 | 212 | 235 | 259 |
| 19 | 166 | 236 | 262 | 289 |
| 20 | 184 | 262 | 290 | 320 |
| 22 | 223 | 317 | 351 | 387 |
| 22.2 | 227 | 323 | 357 | 394 |
| 24 | 265 | 377 | 418 | 460 |
| 25.4 | 297 | 423 | 468 | 516 |
| 26 | 311 | 443 | 490 | 540 |
| 28 | 361 | 513 | 569 | 627 |
| 30 | 414 | 589 | 653 | 719 |
| 32 | 471 | 671 | 743 | 818 |
| 36 | 596 | 849 | 940 | 1040 |
| 40 | 736 | 1050 | 1160 | 1280 |
