6×K29F-FC | 6×K31WS-FC | 6×K36WS-FC

6×K29F-IWRC | 6×K31WS-IWRC | 6×K36WS-IWRC

Field of Application

Bridge crane, gantry crane, tower crane, vehicle crane, crawler crane, port crane, etc. Compacted strand 6×K36WS has higher minimum breaking force and better wear resistance than round strand 6x36.

Compacted strand 6×K36WS has higher minimum breaking force and better wear resistance than round strand 6x36.

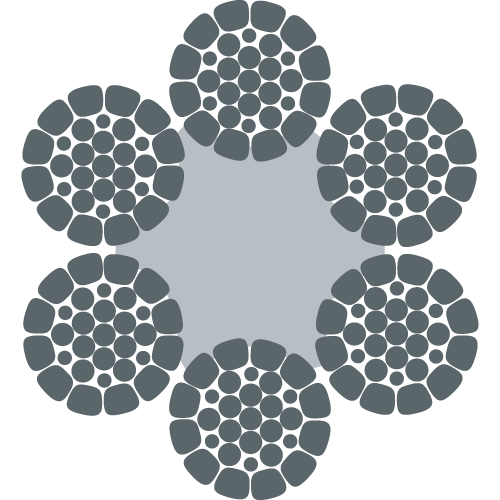

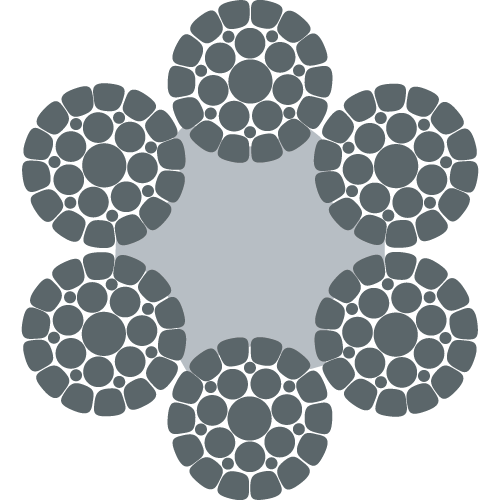

6×K29F-FC | 6×K31WS-FC | 6×K36WS-FC

Nominal diameter (mm)	Approx. weight (kg/100m)	Minimum breaking force (kN)
Nominal diameter (mm)	Approx. weight (kg/100m)	1770	1960	2160
10	42.5	66.0	73.1	80.6
12	61.2	95.1	105	116
14	83.3	129	143	158
16	109	169	187	206
18	138	214	237	261
20	170	264	292	322
22	206	320	354	390
24	245	380	421	464
26	287	446	494	545
28	333	518	573	632
30	383	594	658	725
32	435	676	749	825
34	491	763	845	931
36	551	856	947	1040
38	614	953	1060	1160
40	680	1060	1170	1290
42	750	1160	1290	1420
44	823	1280	1420	1560
46	899	1400	1550	1700
48	979	1520	1680	1860
50	1060	1650	1830	2010
52	1150	1790	1980	2180
54	1240	1930	2130	2350
56	1330	2070	2290	2530
58	1430	2220	2460	2710
60	1530	2380	2630	2900

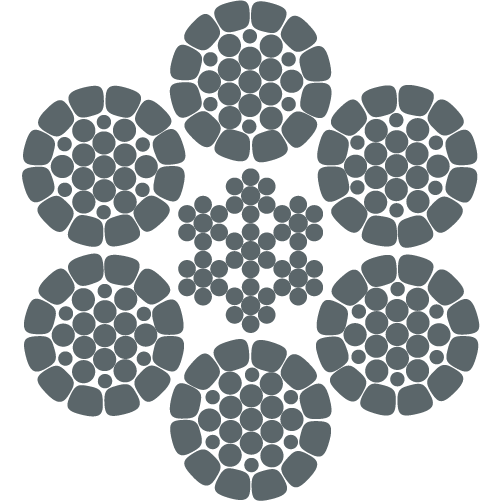

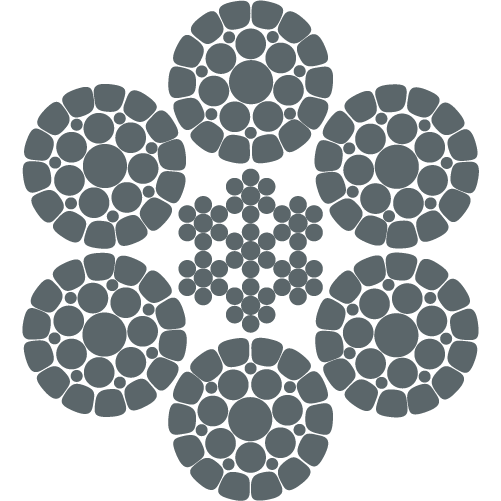

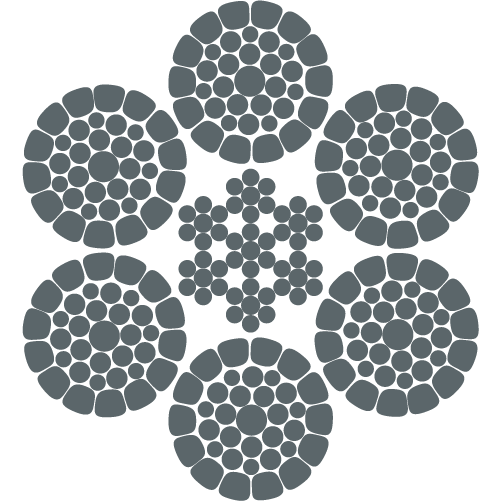

6×K29F-IWRC | 6×K31WS-IWRC | 6×K36WS-IWRC

Nominal diameter (mm)	Approx. weight (kg/100m)	Minimum breaking force (kN)
Nominal diameter (mm)	Approx. weight (kg/100m)	1770	1960	2160
10	46.5	73.5	81.3	89.6
12	67.0	106	117	129
14	91.1	144	159	176
16	119	188	208	229
18	151	238	264	290
20	186	294	325	359
22	225	356	394	434
24	268	423	469	516
26	314	497	550	606
28	365	576	638	703
30	419	661	732	807
32	476	752	833	918
34	538	849	940	1040
36	603	952	1050	1160
38	671	1060	1170	1290
40	744	1180	1300	1430
42	820	1300	1430	1580
44	900	1420	1570	1740
46	984	1550	1720	1900
48	1070	1690	1870	2070
50	1160	1840	2030	2240
52	1260	1990	2200	2420
54	1360	2140	2370	2610
56	1460	2300	2550	2810
58	1560	2470	2740	3020
60	1670	2640	2930	3230
