WIRE ROPE
A special suspension rope for regularly frequented elevator systems.
Low elastic and plastic elongation, High breaking strength in relation to diameter, Good flexural performance with small deflections.

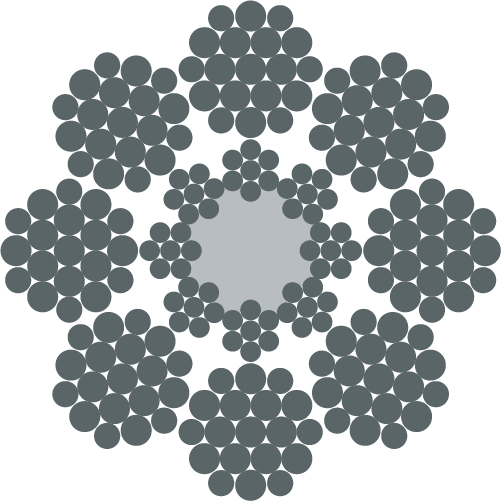

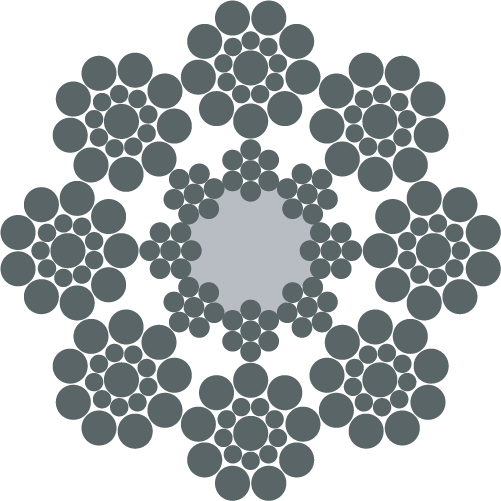

This kind of ropes are installed on mid-rise elevators. Steel rope with 8 outer strands and combined steel and fibre core. Thanks to that combined core, this special suspension rope offers enhanced cross-elasticity to adapt to unique groove requirements and slightly worn grooves. The fibre core also provides additional storage space for lubricant.
| Diameter (mm) |
Approx. weight (kg/100m) |
Minimum breaking force (kN) | |||
| 1370/1770 | 1570/1770 | 1570 | 1770 | ||
| 8 | 24.2 | 35.4 | 37.6 | 35.4 | 39.9 |
| 9 | 30.6 | 44.8 | 47.6 | 44.8 | 50.5 |
| 9.5 | 34.1 | 49.9 | 53.1 | 49.9 | 56.2 |
| 10 | 37.8 | 55.3 | 58.8 | 55.3 | 62.3 |
| 11 | 45.7 | 66.9 | 71.1 | 66.9 | 75.4 |
| 12 | 54.4 | 79.6 | 84.6 | 79.6 | 89.7 |
| 12.7 | 61.0 | 89.1 | 94.8 | 89.1 | 100 |
| 13 | 63.9 | 93.4 | 99.3 | 93.4 | 105 |
| 14 | 74.1 | 108 | 115 | 108 | 122 |
| 15 | 85.1 | 124 | 132 | 124 | 140 |
| 16 | 96.8 | 141 | 150 | 141 | 159 |
