WIRE ROPE
Customer-focussed and cost optimized solution for individually designed and more frequented elevators.
Low elastic and plastic elongation, High breaking strength in relation to diameter.

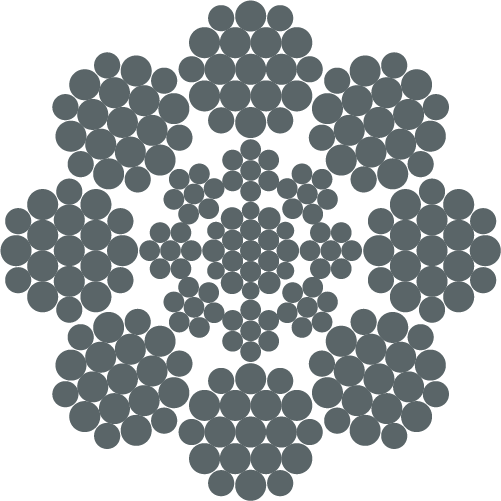

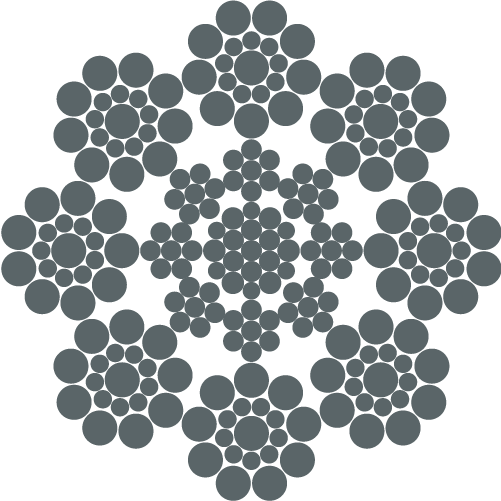

In million ways established steel core rope with 8 outer strands in seale or warrington design also with smaller rope diameters. usually this kind of ropes are installed on mid-rise elevators. Also suitable for indirect hydraulic elevators.
| Diameter (mm) |
Approx. weight (kg/100m) |
Minimum breaking force (kN) | |||
| 1370/1770 | 1570/1770 | 1570 | 1770 | ||
| 8 | 26.4 | 38.4 | 40.8 | 38.4 | 43.3 |
| 9 | 33.4 | 48.6 | 51.7 | 48.6 | 54.8 |
| 9.5 | 37.2 | 54.1 | 57.6 | 54.1 | 61.0 |
| 10 | 41.2 | 60.0 | 63.8 | 60.0 | 67.6 |
| 11 | 49.9 | 72.6 | 77.2 | 72.6 | 81.8 |
| 12 | 59.3 | 86.4 | 91.9 | 86.4 | 97.4 |
| 12.7 | 66.5 | 96.7 | 103 | 96.7 | 109 |
| 13 | 69.6 | 101 | 108 | 101 | 114 |
| 14 | 80.8 | 118 | 125 | 118 | 133 |
| 15 | 92.7 | 135 | 144 | 135 | 152 |
| 16 | 105 | 154 | 163 | 154 | 173 |
