WIRE ROPE
High rise and super high rise elevators.

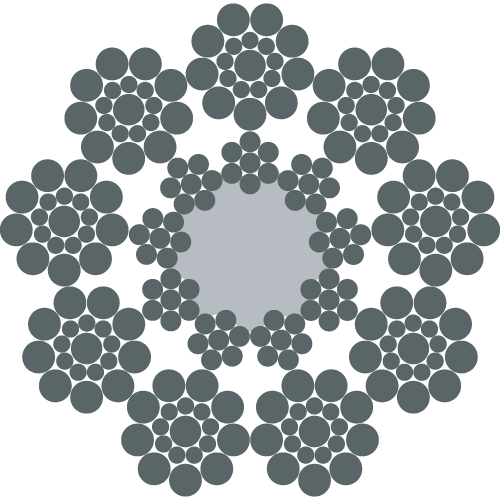

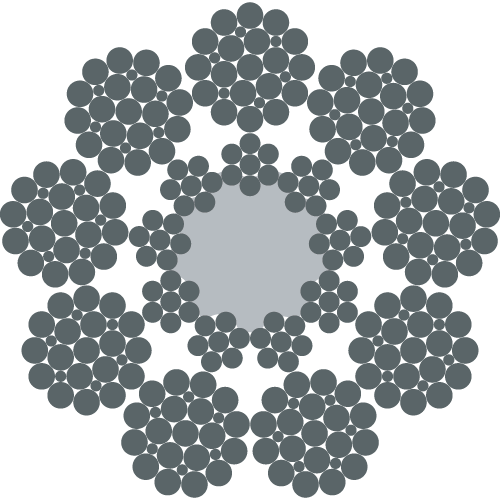

Enables highest stopping precision during loading and unloading, Reliable CSC-design, Very round rope cross section, Very good fatigue bending characteristics, Extreme wear-resistance. Thanks to that combined core, this special suspension rope offers enhanced cross-elasticity to adapt to unique groove requirements and slightly worn grooves. The fibre core also provides additional storage space for lubricant.
| Diameter (mm) |
Approx. weight (kg/100m) |
Minimum breaking force (kN) | ||
| 1570/1770 | 1570 | 1770 | ||
| 8 | 23.7 | 36.9 | 34.7 | 39.1 |
| 9 | 30.1 | 46.7 | 43.9 | 49.5 |
| 9.5 | 33.5 | 52.0 | 48.9 | 55.1 |
| 10 | 37.1 | 57.6 | 54.2 | 61.1 |
| 11 | 44.9 | 69.7 | 65.5 | 73.9 |
| 12 | 53.4 | 83.0 | 78.0 | 87.9 |
| 12.7 | 59.8 | 92.9 | 87.4 | 98.5 |
| 13 | 62.7 | 97.4 | 91.5 | 103 |
| 14 | 72.7 | 113 | 106 | 120 |
| 15 | 83.5 | 130 | 122 | 137 |
| 16 | 95.0 | 147 | 139 | 156 |
