WIRE ROPE
High rise and super high rise elevators.

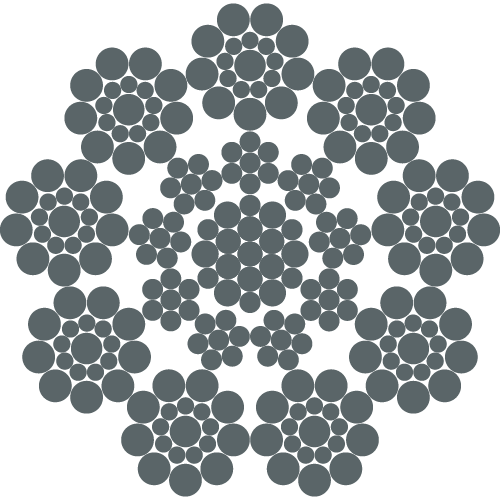

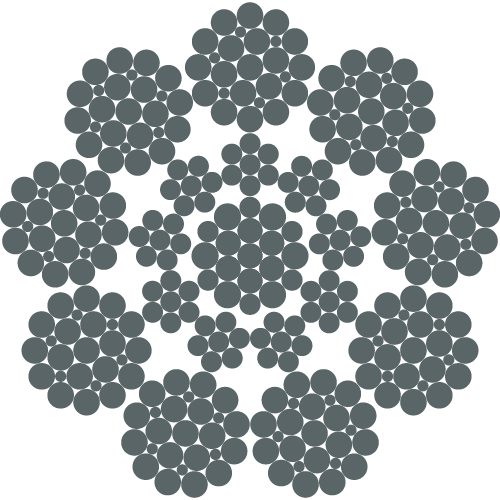

Enables highest stopping precision during loading and unloading, Reliable IWRC-design, Very round rope cross section, Very good fatigue bending characteristics, Extreme wear-resistance.
| Diameter (mm) |
Approx. weight (kg/100m) |
Minimum breaking force (kN) | ||
| 1570/1770 | 1570 | 1770 | ||
| 8 | 27.0 | 41.5 | 39.0 | 44.0 |
| 9 | 34.2 | 52.5 | 49.3 | 55.6 |
| 9.5 | 38.1 | 58.5 | 55.0 | 62.0 |
| 10 | 42.2 | 64.8 | 60.9 | 68.7 |
| 11 | 51.1 | 78.4 | 73.7 | 83.1 |
| 12 | 60.8 | 93.3 | 87.7 | 98.9 |
| 12.7 | 68.1 | 105 | 98.3 | 111 |
| 13 | 71.3 | 110 | 103 | 116 |
| 14 | 82.7 | 127 | 119 | 135 |
| 15 | 95.0 | 146 | 137 | 155 |
| 16 | 108 | 166 | 156 | 176 |
