WIRE ROPE
Suitable for lifting rigging of equipment such as port cranes, building tower cranes, and truck cranes.
Commonly used to make pressed and cast rigging (such as balance beam rigging), suitable for handling operations of large equipment and steel structures.
Used as traction ropes for mine hoists and slope winches, adapted to medium-frequency winding needs.
It undertakes traction tasks in equipment such as pile drivers and dock unloaders, and some low-frequency lifting equipment (such as temporary freight elevators) use it as a lifting rope.

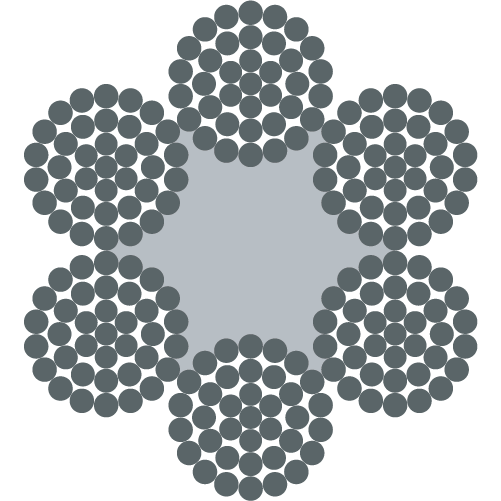

| Nominal diameter (mm) |
Approx. weight (kg/100m) |
Minimum breaking force (kN) | ||
| 1570 | 1770 | 1960 | ||
| 5 | 8.65 | 11.6 | 13.1 | 14.5 |
| 6 | 12.5 | 16.7 | 18.8 | 20.8 |
| 7 | 17.0 | 22.7 | 25.6 | 28.3 |
| 8 | 22.1 | 29.6 | 33.4 | 37.0 |
| 9 | 28.0 | 37.5 | 42.3 | 46.8 |
| 10 | 34.6 | 46.3 | 52.2 | 57.8 |
| 11 | 41.9 | 56.0 | 63.2 | 70.0 |
| 12 | 49.8 | 66.7 | 75.2 | 83.3 |
| 13 | 58.5 | 78.3 | 88.2 | 97.7 |
| 14 | 67.8 | 90.8 | 102 | 113 |
| 16 | 88.6 | 119 | 134 | 148 |
| 18 | 112 | 150 | 169 | 187 |
| 20 | 138 | 185 | 209 | 231 |
| 22 | 167 | 224 | 253 | 280 |
| 24 | 199 | 267 | 301 | 333 |
| 26 | 234 | 313 | 353 | 391 |
| 28 | 271 | 363 | 409 | 453 |

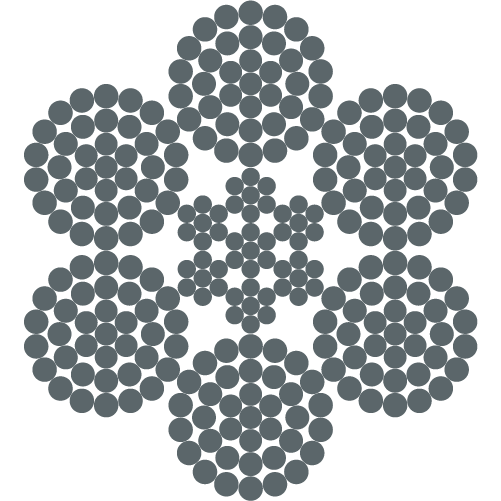

| Nominal diameter (mm) |
Approx. weight (kg/100m) |
Minimum breaking force (kN) | ||
| 1570 | 1770 | 1960 | ||
| 8 | 24.4 | 32.1 | 36.1 | 40.0 |
| 9 | 30.9 | 40.6 | 45.7 | 50.6 |
| 10 | 38.1 | 50.1 | 56.5 | 62.5 |
| 11 | 46.1 | 60.6 | 68.3 | 75.7 |
| 12 | 54.9 | 72.1 | 81.3 | 90.0 |
| 13 | 64.4 | 84.6 | 95.4 | 106 |
| 14 | 74.7 | 98.2 | 111 | 123 |
| 16 | 98 | 128 | 145 | 160 |
| 18 | 123 | 162 | 183 | 203 |
| 20 | 152 | 200 | 226 | 250 |
| 22 | 184 | 242 | 273 | 303 |
| 24 | 219 | 288 | 325 | 360 |
| 26 | 258 | 339 | 382 | 423 |
| 28 | 299 | 393 | 443 | 490 |
