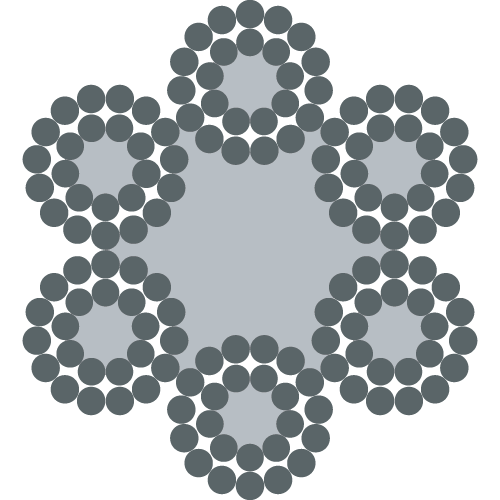

6×24FC-FC

6×24FC-FC

Field of Application

Used for tugboat towing, cargo net fixing and floating timber bundling, suitable for bundling and fixing of large equipment during transportation (such as port machinery loading and bundling) and mooring of cargo yards. quality B zinc-coated is necessary.

Nominal diameter (mm)	Approx. weight (kg/100m)	Minimum breaking force (kN)
Nominal diameter (mm)	Approx. weight (kg/100m)	1570	1770
8	20.1	28.7	32.4
9	25.4	36.4	41.0
10	31.4	44.9	50.6
11	38.0	54.3	61.3
12	45.2	64.7	72.9
13	53.1	75.9	85.6
14	61.5	88.0	99.2
16	80.4	115	130
18	102	145	164
20	126	180	202
22	152	217	245
24	181	259	292
26	212	304	342
28	246	352	397
30	283	404	456
32	322	460	518
36	407	582	656
40	502	718	810
