zinc-coated steel strand is widely used in the power and construction industries. It is made of galvanized steel wire stranded together and has become a key material due to its high strength and corrosion resistance.

Features

High Strength: Tensile strength reaches 1270-1670MPa, capable of withstanding enormous tensile forces.
Corrosion Resistance: The galvanized coating provides long-term protection, adapting to harsh environments.
Stability: Structural design ensures no deformation during long-term use.

Applications

Power Engineering: Used for overhead guy wires, ground wires for transmission lines, etc.
Building Structures: Used as load-bearing cables or structural cables to enhance building stability.
Other Applications: Highway guardrails, bridge cables, etc.

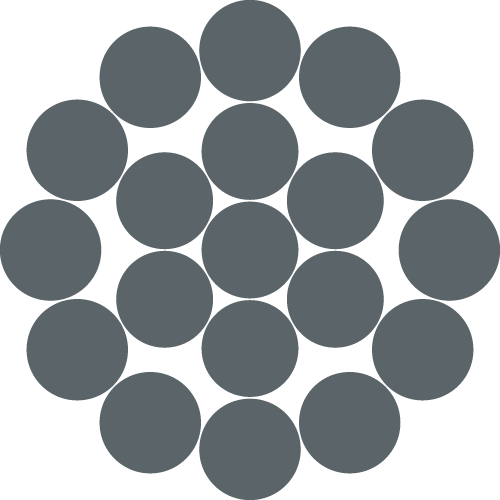

DIA. strand	DIA. wire	steel area	Approx. length mass	1270 MPa	1370 MPa	1470 MPa	1570 MPa	1670 MPa
mm	mm	mm²	g/m	kN	kN	kN	kN	kN
8.00	1.60	38.20	304.00	43.66	47.10	50.54	53.98	57.41
9.00	1.80	48.35	385.00	55.26	59.62	63.97	68.32	72.67
10.00	2.00	59.69	475.00	68.23	73.60	78.97	84.34	89.71
11.00	2.20	72.20	569.00	82.58	89.00	95.58	102.09	108.52
11.50	2.30	78.94	628.00	90.23	97.33	104.40	111.50	118.65
13.00	2.60	100.90	803.00	115.30	124.40	133.50	142.60	151.65
14.50	2.90	125.50	999.00	143.40	154.70	166.00	177.30	188.63
16.00	3.20	152.80	1220.00	174.70	188.40	202.20	215.90	229.66
17.50	3.50	182.80	1460.00	208.90	225.40	241.80	258.30	274.75
20.00	4.00	238.80	1900.00	272.90	294.40	315.90	337.40	358.92

Minimum mass of zinc

DIA.Wire	Class A	Class B	Class C
mm	g/m²	g/m²	g/m²
1.00	110.00	160.00	---
1.20	110.00	160.00	---
1.40	130.00	160.00	---
1.60	130.00	180.00	---
1.80	160.00	180.00	---
2.00	160.00	200.00	230.00
2.30	200.00	220.00	250.00
2.60	200.00	230.00	260.00
2.90	230.00	250.00	280.00
3.20	230.00	275.00	300.00
3.50	250.00	275.00	320.00
3.80	250.00	275.00	330.00
4.00	250.00	300.00	350.00
