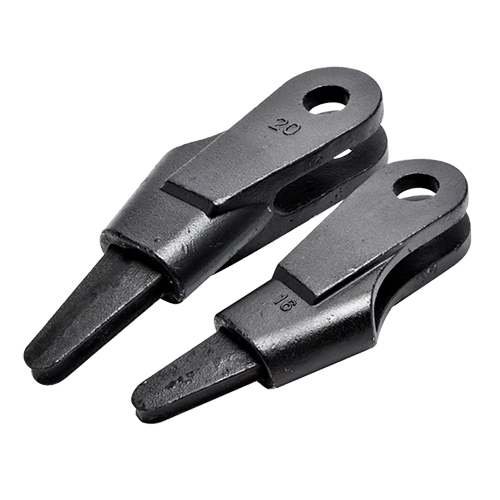

Wedge socket are key components for securing the ends of steel wire ropes. They achieve self-locking through the engagement of a wedge and the inclined surface of the sleeve, ensuring the wire rope will not slip during operation.

Their structure is simple, safe, and reliable, conforming to standards such as GB/T 3811, with rated loads ranging from 10KN to 200KN.

Attention the following:

1. Specification Matching: Select the wedge socket with the appropriate specification based on the wire rope diameter.
2. Quality Certification: Ensure the product conforms to standards such as GB/T 5973.
3. Installation Specifications: During installation, ensure a tight fit between the wedge and the inclined surface of the sleeve to prevent loosening.

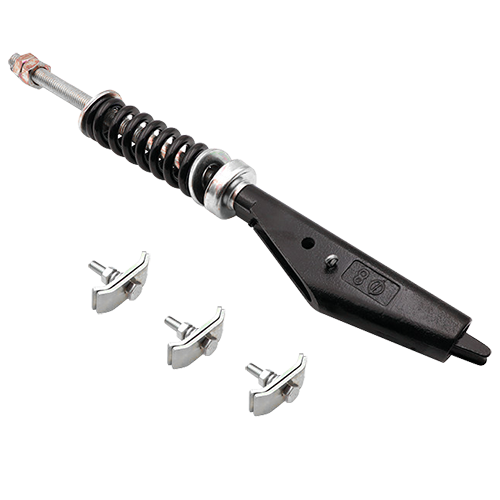

Asymmetric Wedge Socket - fixed type

The illustration is for reference only; please refer to the actual product photos provided by the salesman.

DIA. wire rope	L	B	C	Installation hole	Screw nut
kN	mm	mm	g/m	mm	mm
8	375	160	45	26	M14
10	490	180	54	26	M16
11	490	180	54	26	M16
12	575	218	62	30	M18
13	575	218	60	30	M18
16	600	190	76	22	M20

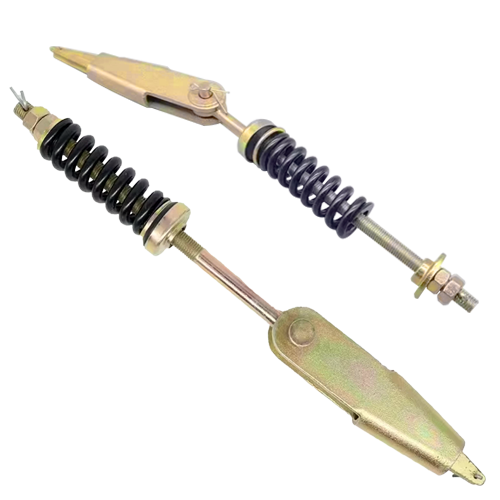

Symmetric Wedge Socket - flexible type

The illustration is for reference only; please refer to the actual product photos provided by the salesman.

DIA. wire rope	L	B	C	Installation hole	Screw nut
kN	mm	mm	g/m	mm	mm
6-8	330	150	45	22	M12
9-11	465	180	57	26	M16
12-13	600	230	74	30	M20
14	600	230	76	30	M20
16	650	260	90	30	M22
