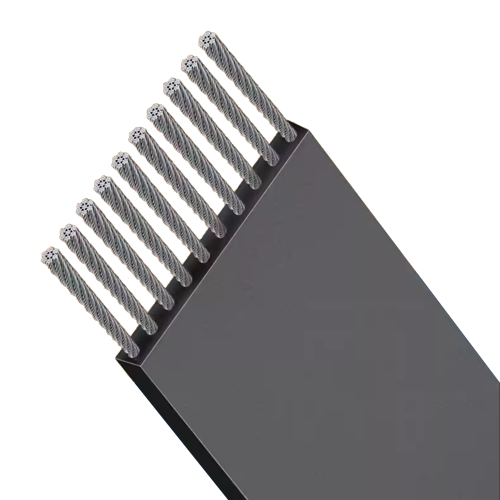

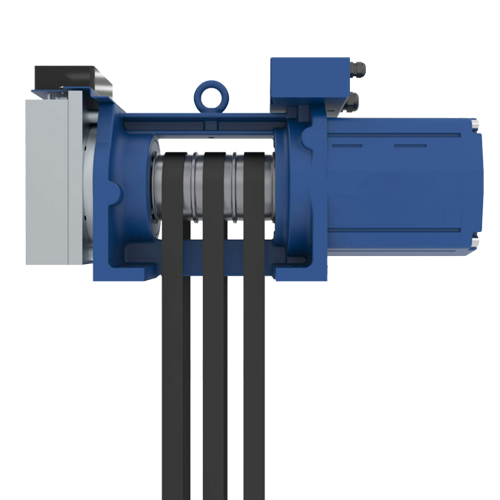

Comparing with traditional wire rope, hoisting belt is formed by multiple fine steel cord, and coated with high grade TPU. The new design brings a outstanding fatigue life time. Meanwhile the bending radius is 1/4 of traditional wire rope, which make it possible to develop very compact traction system.
As a new generation lifting technology, hoisting belt has much longer life time, up to 15 years, which means a successful product must offer infinite performance scope alongside consistent quality.
10,000,000 bending
Temperature range: -20℃ ~ 50℃
Environmental resistance (UV-radiation, salt spray)
Steel wire coated with adhesive, seperation problem free
Stable friction coefficient in all condition
Uniform overall dimensions
Sufficient electrical insulation
Uniform and stable conductivity of steel wire
Low load elongation <0.30%
| Model | MBL | Width | Thickness | Approx. belt weight |
Min. bending diameter |
No.of wire rops |
| kN | mm | mm | g/m | mm | ||
| EB - 32A | 32.0 | 30 | 3.0 | 200 | 80 | 12 |
| EB - 32K | 32.0 | 20 | 3.5 | 160 | 100 | 6 |
| EB - 43A | 43.0 | 30 | 3.3 | 230 | 100 | 10 |
| EB - 43K | 43.0 | 25 | 3.5 | 205 | 100 | 8 |
| EB - 43V | 43.0 | 36 | 2.8 | 220 | 65 | 16 |
| EB - 64A | 64.0 | 60 | 3.0 | 400 | 80 | 24 |
| EB - 64K | 64.0 | 36 | 3.6 | 310 | 100 | 12 |
