Stainless steel wire rope is a high-strength, corrosion-resistant rope made of stainless steel, which is especially suitable for use in humid or corrosive environments.
Its core advantages lie in its excellent rust resistance and durability, and it is commonly used in various scenarios such as industrial hoisting, construction lifting, and outdoor drying.
Material: Typically made of 304 or 316 stainless steel, with 316 stainless steel offering superior corrosion resistance.

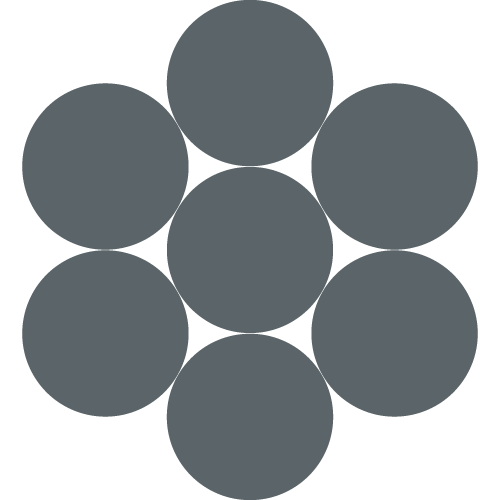

Structure: Available in various structures including single-strand (e.g., 1×7) and multi-strand (e.g., 6×19, 7×7), with diameters ranging from 0.15mm to 50mm.
Performance: High tensile strength, good fatigue resistance, and high dimensional accuracy.
Industrial Applications: Such as crane power transmission, bridge support, etc.
Outdoor Uses: For example, clotheslines, cargo bundling, or pet leashes.
Special Applications: Also used in invisible protective netting, medical device manufacturing, etc.
| DIA. | Approx. length mass |
AISI 304 06Cr19Ni10 |
AISI 316 06Cr17Ni12Mo2 |
| mm | kg/100m | kN | kN |
| 0.30 | 0.044 | 0.093 | / |
| 0.35 | 0.061 | 0.127 | / |
| 0.40 | 0.080 | 0.157 | / |
| 0.45 | 0.100 | 0.200 | / |
| 0.50 | 0.125 | 0.255 | 0.231 |
| 0.60 | 0.180 | 0.382 | 0.333 |
| 0.70 | 0.245 | 0.540 | 0.445 |
| 0.80 | 0.327 | 0.667 | 0.588 |
| 0.90 | 0.400 | 0.823 | 0.736 |
| 1.0 | 0.500 | 1.00 | 0.910 |
| 1.2 | 0.700 | 1.32 | 1.21 |
| 1.5 | 1.18 | 2.26 | 2.05 |
| 2.0 | 2.10 | 4.02 | 3.63 |
| 2.5 | 3.27 | 6.13 | 5.34 |
| 3.0 | 4.71 | 8.83 | 7.70 |
| 3.5 | 6.67 | 11.6 | 9.81 |
| 4.0 | 8.34 | 15.1 | 12.7 |
| 5.0 | 13.1 | 22.8 | 19.2 |
| 6.0 | 18.9 | 33.0 | 27.8 |
