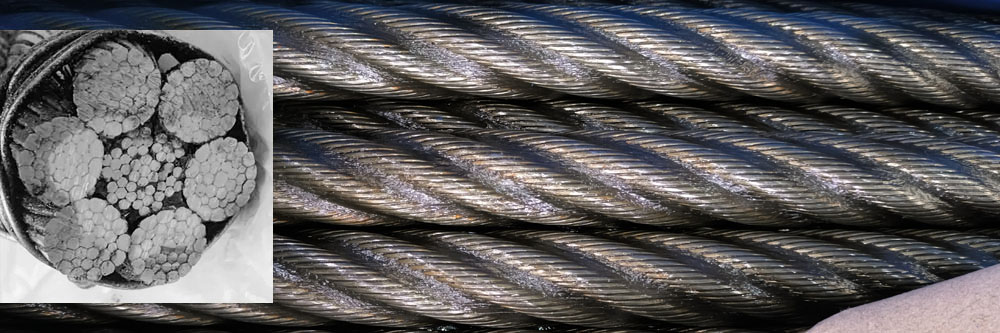

Main hoist rope for bridge crane, gantry crane, tower crane, vehicle crane, crawler crane, port crane, etc. Compacted strand 6×K36WS has higher minimum breaking force and better wear resistance than round strand 6x36.
Compacted strand 6×K36WS has higher minimum breaking force and better wear resistance than round strand 6x36.
We do OEM work for Korea brand Youngwire and DSR. Produce wire strands for European brand Gustav wolf and Pheifer.
Reliable quality, great value.
| Nominal diameter (mm) |
Approx. weight (kg/100m) |
Minimum breaking force (kN) | ||
| 1770 | 1960 | 2160 | ||
| 10 | 42.5 | 66.0 | 73.1 | 80.6 |
| 12 | 61.2 | 95.1 | 105 | 116 |
| 14 | 83.3 | 129 | 143 | 158 |
| 16 | 109 | 169 | 187 | 206 |
| 18 | 138 | 214 | 237 | 261 |
| 20 | 170 | 264 | 292 | 322 |
| 22 | 206 | 320 | 354 | 390 |
| 24 | 245 | 380 | 421 | 464 |
| 26 | 287 | 446 | 494 | 545 |
| 28 | 333 | 518 | 573 | 632 |
| 30 | 383 | 594 | 658 | 725 |
| 32 | 435 | 676 | 749 | 825 |
| 34 | 491 | 763 | 845 | 931 |
| 36 | 551 | 856 | 947 | 1040 |
| 38 | 614 | 953 | 1060 | 1160 |
| 40 | 680 | 1060 | 1170 | 1290 |
| 42 | 750 | 1160 | 1290 | 1420 |
| 44 | 823 | 1280 | 1420 | 1560 |
| 46 | 899 | 1400 | 1550 | 1700 |
| 48 | 979 | 1520 | 1680 | 1860 |
| 50 | 1060 | 1650 | 1830 | 2010 |
| 52 | 1150 | 1790 | 1980 | 2180 |
| 54 | 1240 | 1930 | 2130 | 2350 |
| 56 | 1330 | 2070 | 2290 | 2530 |
| 58 | 1430 | 2220 | 2460 | 2710 |
| 60 | 1530 | 2380 | 2630 | 2900 |
| Nominal diameter (mm) |
Approx. weight (kg/100m) |
Minimum breaking force (kN) | ||
| 1770 | 1960 | 2160 | ||
| 10 | 46.5 | 73.5 | 81.3 | 89.6 |
| 12 | 67.0 | 106 | 117 | 129 |
| 14 | 91.1 | 144 | 159 | 176 |
| 16 | 119 | 188 | 208 | 229 |
| 18 | 151 | 238 | 264 | 290 |
| 20 | 186 | 294 | 325 | 359 |
| 22 | 225 | 356 | 394 | 434 |
| 24 | 268 | 423 | 469 | 516 |
| 26 | 314 | 497 | 550 | 606 |
| 28 | 365 | 576 | 638 | 703 |
| 30 | 419 | 661 | 732 | 807 |
| 32 | 476 | 752 | 833 | 918 |
| 34 | 538 | 849 | 940 | 1040 |
| 36 | 603 | 952 | 1050 | 1160 |
| 38 | 671 | 1060 | 1170 | 1290 |
| 40 | 744 | 1180 | 1300 | 1430 |
| 42 | 820 | 1300 | 1430 | 1580 |
| 44 | 900 | 1420 | 1570 | 1740 |
| 46 | 984 | 1550 | 1720 | 1900 |
| 48 | 1070 | 1690 | 1870 | 2070 |
| 50 | 1160 | 1840 | 2030 | 2240 |
| 52 | 1260 | 1990 | 2200 | 2420 |
| 54 | 1360 | 2140 | 2370 | 2610 |
| 56 | 1460 | 2300 | 2550 | 2810 |
| 58 | 1560 | 2470 | 2740 | 3020 |
| 60 | 1670 | 2640 | 2930 | 3230 |
