High rise and super high rise elevators.

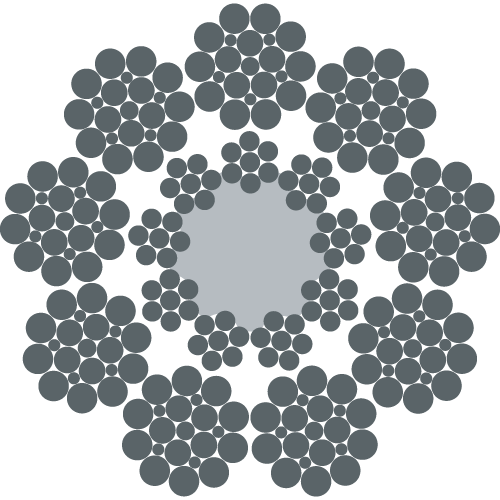

Enables highest stopping precision during loading and unloading, Reliable CSC-design, Very round rope cross section, Very good fatigue bending characteristics, Extreme wear-resistance. Thanks to that combined core, this special suspension rope offers enhanced cross-elasticity to adapt to unique groove requirements and slightly worn grooves. The fibre core also provides additional storage space for lubricant.
We do OEM work for Korea brand Youngwire and DSR. Produce wire strands for European brand Gustav wolf and Pheifer.
Reliable quality, great value.| Diameter (mm) |
Approx. weight (kg/100m) |
Minimum breaking force (kN) | ||
| 1570/1770 | 1570 | 1770 | ||
| 8 | 23.7 | 36.9 | 34.7 | 39.1 |
| 9 | 30.1 | 46.7 | 43.9 | 49.5 |
| 9.5 | 33.5 | 52.0 | 48.9 | 55.1 |
| 10 | 37.1 | 57.6 | 54.2 | 61.1 |
| 11 | 44.9 | 69.7 | 65.5 | 73.9 |
| 12 | 53.4 | 83.0 | 78.0 | 87.9 |
| 12.7 | 59.8 | 92.9 | 87.4 | 98.5 |
| 13 | 62.7 | 97.4 | 91.5 | 103 |
| 14 | 72.7 | 113 | 106 | 120 |
| 15 | 83.5 | 130 | 122 | 137 |
| 16 | 95.0 | 147 | 139 | 156 |
