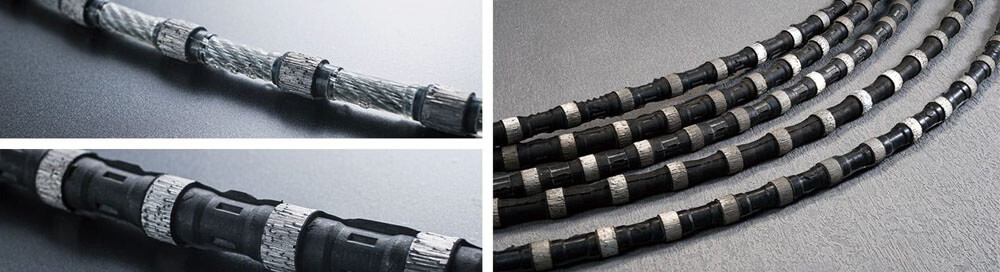

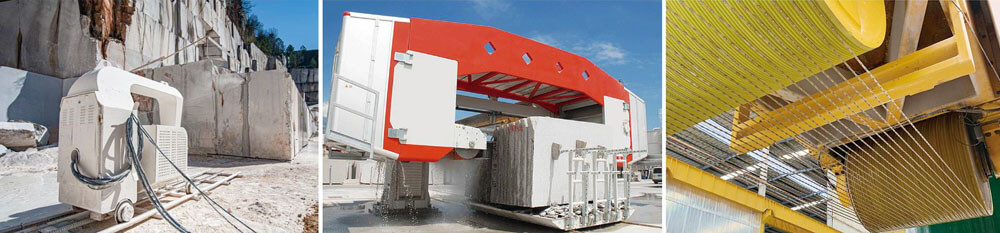

Designed for diamond wire saw for stone cutting. Excellent bending fatigue-resistant property
Reliable quality, great value, contact us now!
| Nominal diameter (mm) |
Approx. weight (kg/100m) |
Minimum breaking force (kN) | ||
| 2160 | 2360 | 2450 | ||
| 3 | 3.56 | 7.54 | 8.24 | 8.56 |
| 4 | 6.34 | 13.4 | 14.7 | 15.2 |
| 4.5 | 8.02 | 17.0 | 18.5 | 19.2 |
| 4.8 | 9.12 | 19.3 | 21.1 | 21.9 |
| 4.9 | 9.51 | 20.1 | 22.0 | 22.8 |
| 5 | 9.90 | 21.0 | 22.9 | 23.8 |
| 6 | 14.3 | 30.2 | 33.0 | 34.2 |
| 7 | 19.4 | 41.1 | 44.9 | 46.6 |
| 8 | 25.3 | 53.6 | 58.6 | 60.8 |
