A special suspension rope for regularly frequented elevator systems.
This kind of ropes are installed on mid-rise elevators. Steel rope with 8 outer strands and combined steel and fibre core. Thanks to that combined core, this special suspension rope offers enhanced cross-elasticity to adapt to unique groove requirements and slightly worn grooves. The fibre core also provides additional storage space for lubricant.
We do OEM work for Korea brand Youngwire and DSR. Produce wire strands for European brand Gustav wolf and Pheifer.

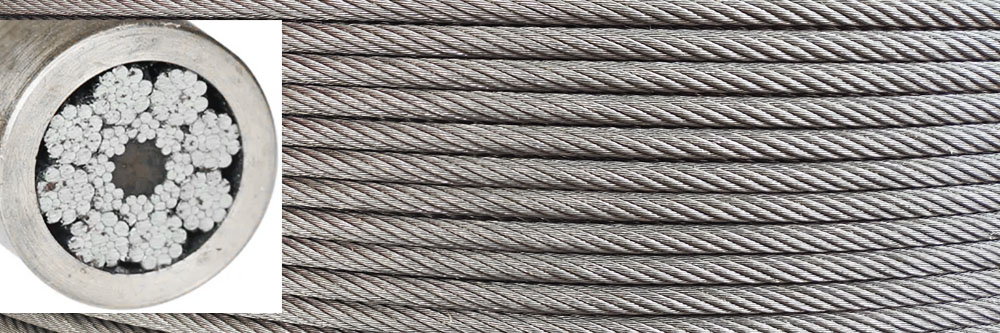

8×19S-CSC is a reliable alternative to PAWO F3 and DRAKO 210 TFS with good value.
8×19W-CSC is a reliable alternative to PAWO F7 and DRAKO 210 TF with good value.
| Diameter (mm) |
Approx. weight (kg/100m) |
Minimum breaking force (kN) | |||
| 1370/1770 | 1570/1770 | 1570 | 1770 | ||
| 8 | 24.2 | 35.4 | 37.6 | 35.4 | 39.9 |
| 9 | 30.6 | 44.8 | 47.6 | 44.8 | 50.5 |
| 9.5 | 34.1 | 49.9 | 53.1 | 49.9 | 56.2 |
| 10 | 37.8 | 55.3 | 58.8 | 55.3 | 62.3 |
| 11 | 45.7 | 66.9 | 71.1 | 66.9 | 75.4 |
| 12 | 54.4 | 79.6 | 84.6 | 79.6 | 89.7 |
| 12.7 | 61.0 | 89.1 | 94.8 | 89.1 | 100 |
| 13 | 63.9 | 93.4 | 99.3 | 93.4 | 105 |
| 14 | 74.1 | 108 | 115 | 108 | 122 |
| 15 | 85.1 | 124 | 132 | 124 | 140 |
| 16 | 96.8 | 141 | 150 | 141 | 159 |
